STTRS1 V2 Room Thermostat

Description

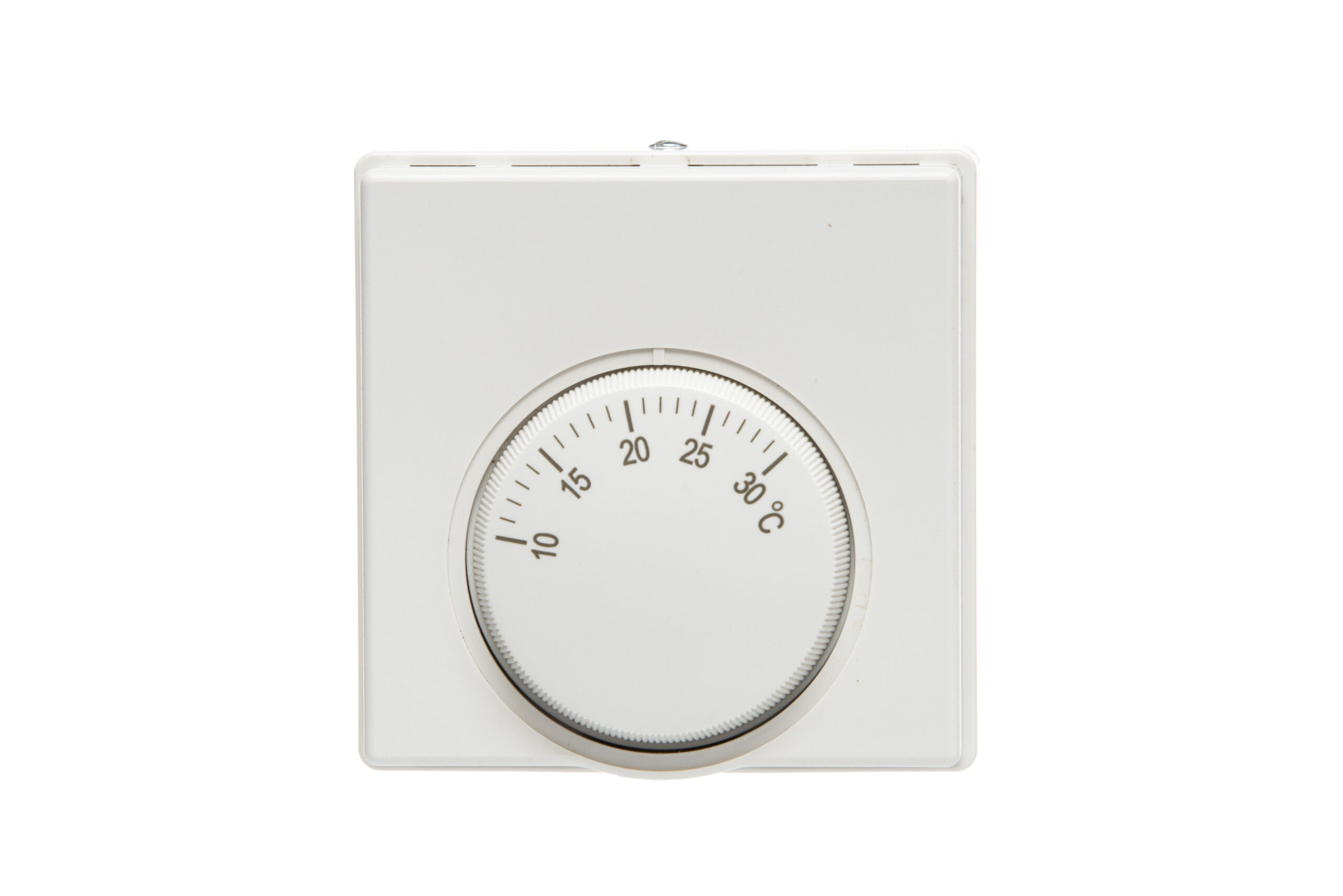

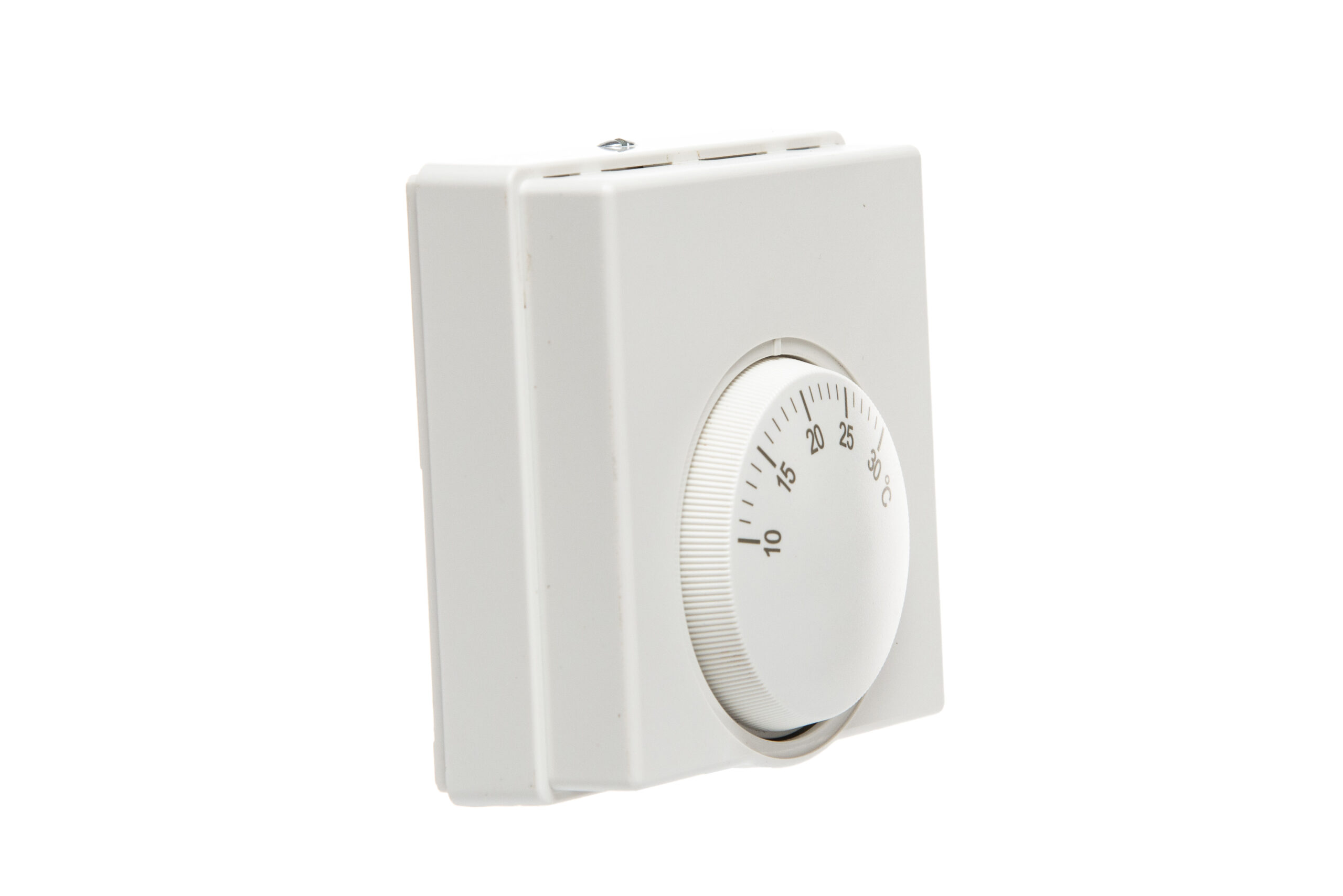

The Tower STTRS1 V2.0 is a dial-type mechanical room thermostat for the regulation of room temperature with neutral housing to blend in with any style decor.

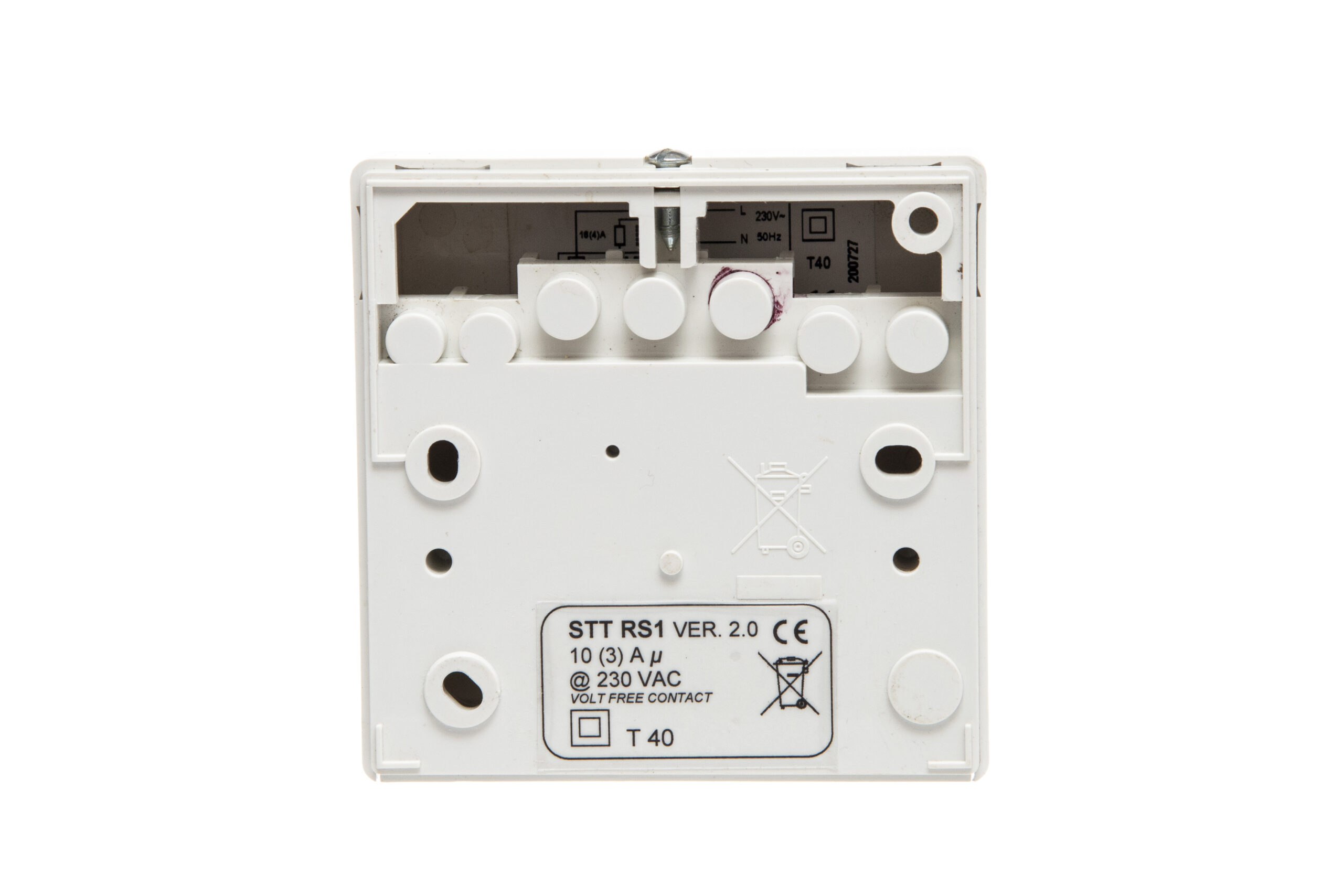

Designed for wall mounting, with 60mm fixing centres for back-box compatibility, and suitable for in-wall or surface-run wiring connection. The thermostat cover incorporates four breakouts for surface-run conduit. The temperature regulation mechanism is the well-proven sealed bellows system.

• Temperature range: 10—30°C
• Differential: 1°C
• Contact rating: 10(3) Amperes
• System compatibility: Mains (230V AC) or low-voltage
• Suitable for combi boilers: Yes
• Width = 85mm  Height = 85mm  Depth = 40mm
• Mounting holes 60mm centres
