SHT

Description

Key Information

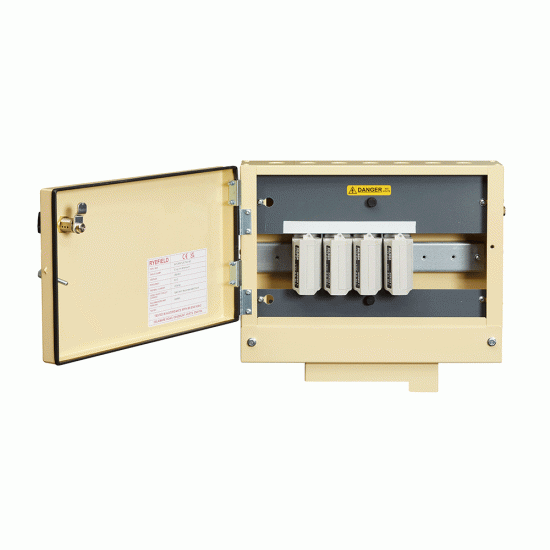

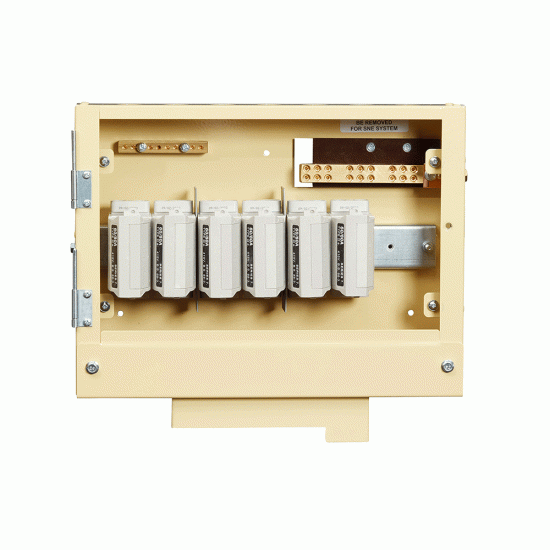

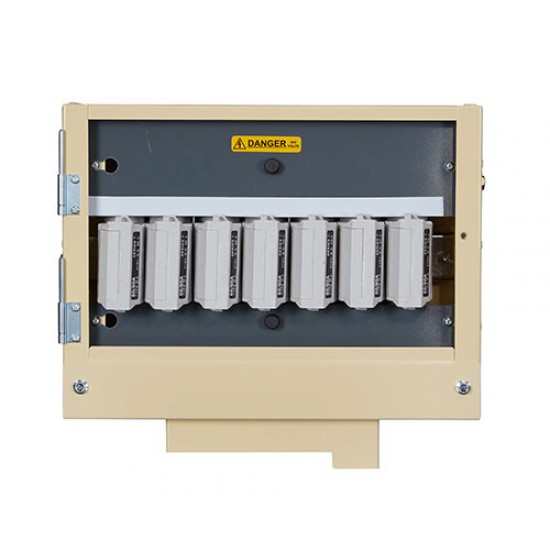

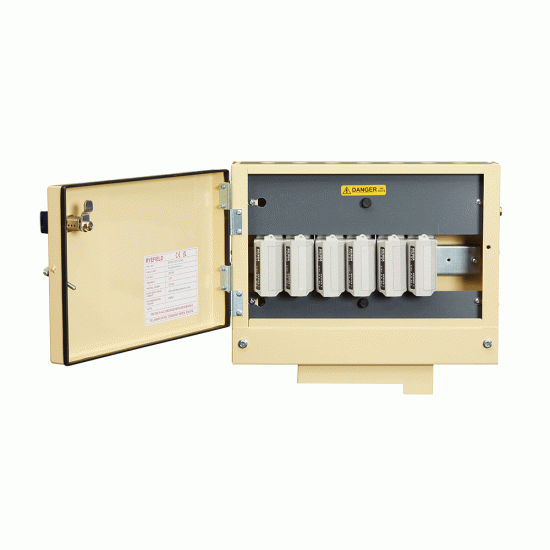

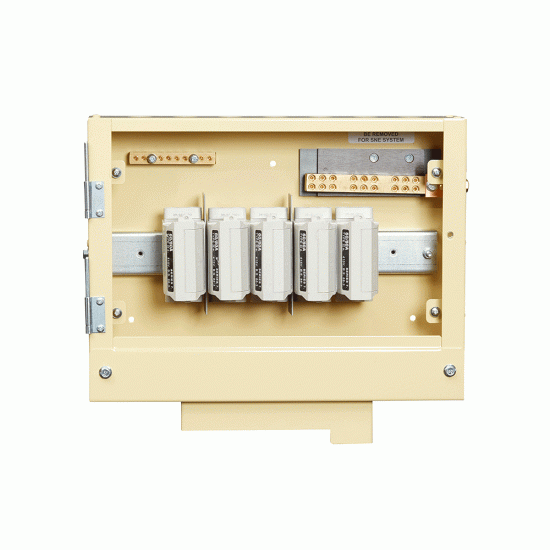

• Compact distribution board which has been designed for mounting above 100amp three phase.
• Case fabricated from 18g sheet steel, (mul-t-lock fitted on cover).
• Lift off pattern hinged cover secured by captive set screws & provision for sealing.
• Slots in bottom g.e.c. – henley moulded intake unit – connections to distridution board by “supply authority”.
• 25mm knock outs in top for each s.p.n. outgoing circuit.
• 60a service fuse units.
• Standard brass 35mm adjustable clamps.
• Brass neutral & earth block with pinching screw terminals.
• Bakelite fillets between phases.

  Finish:
• Casework stove enamelled light straw ral 1014.
• Electrical parts clean.
• Steel screws and component parts zinc plated.
