Hager

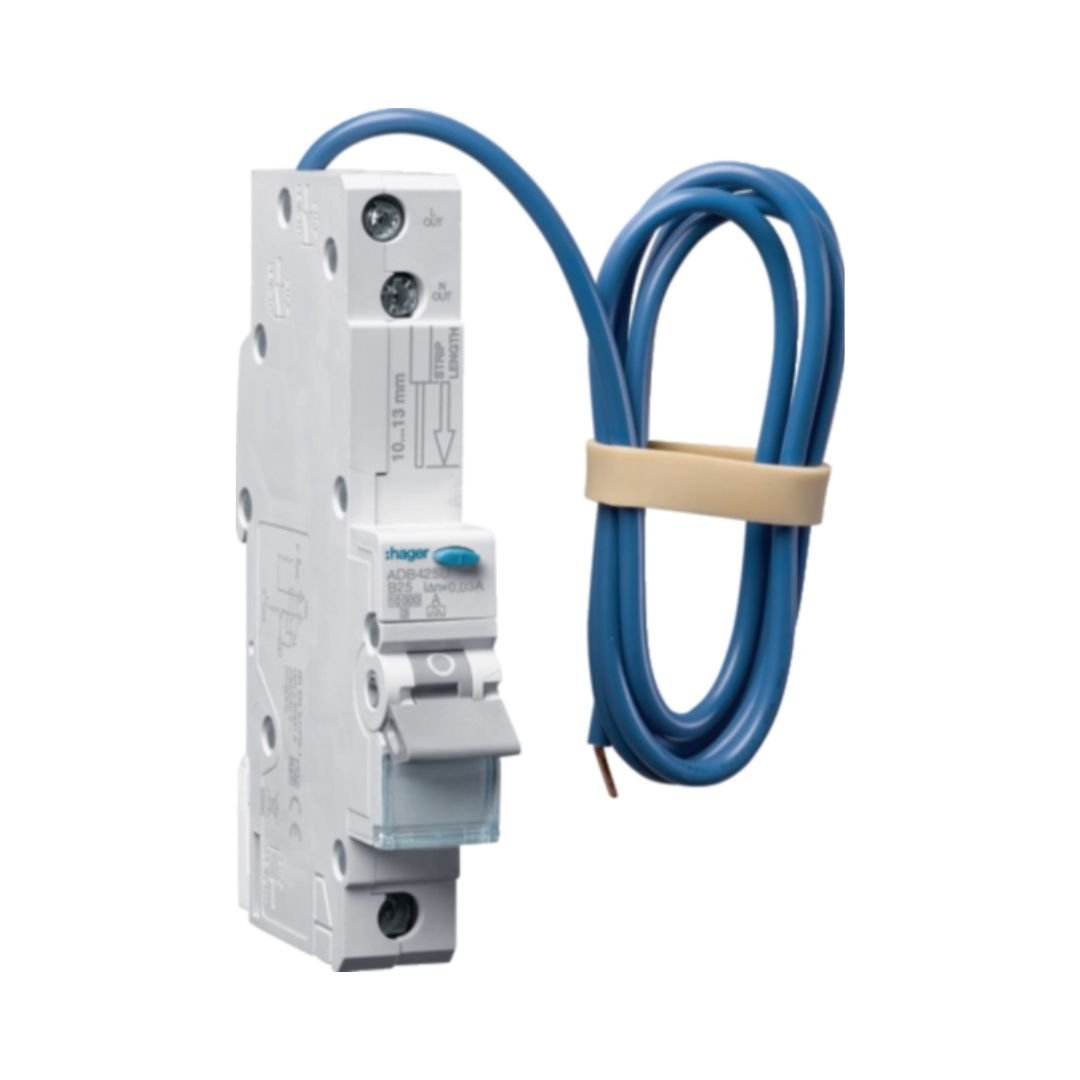

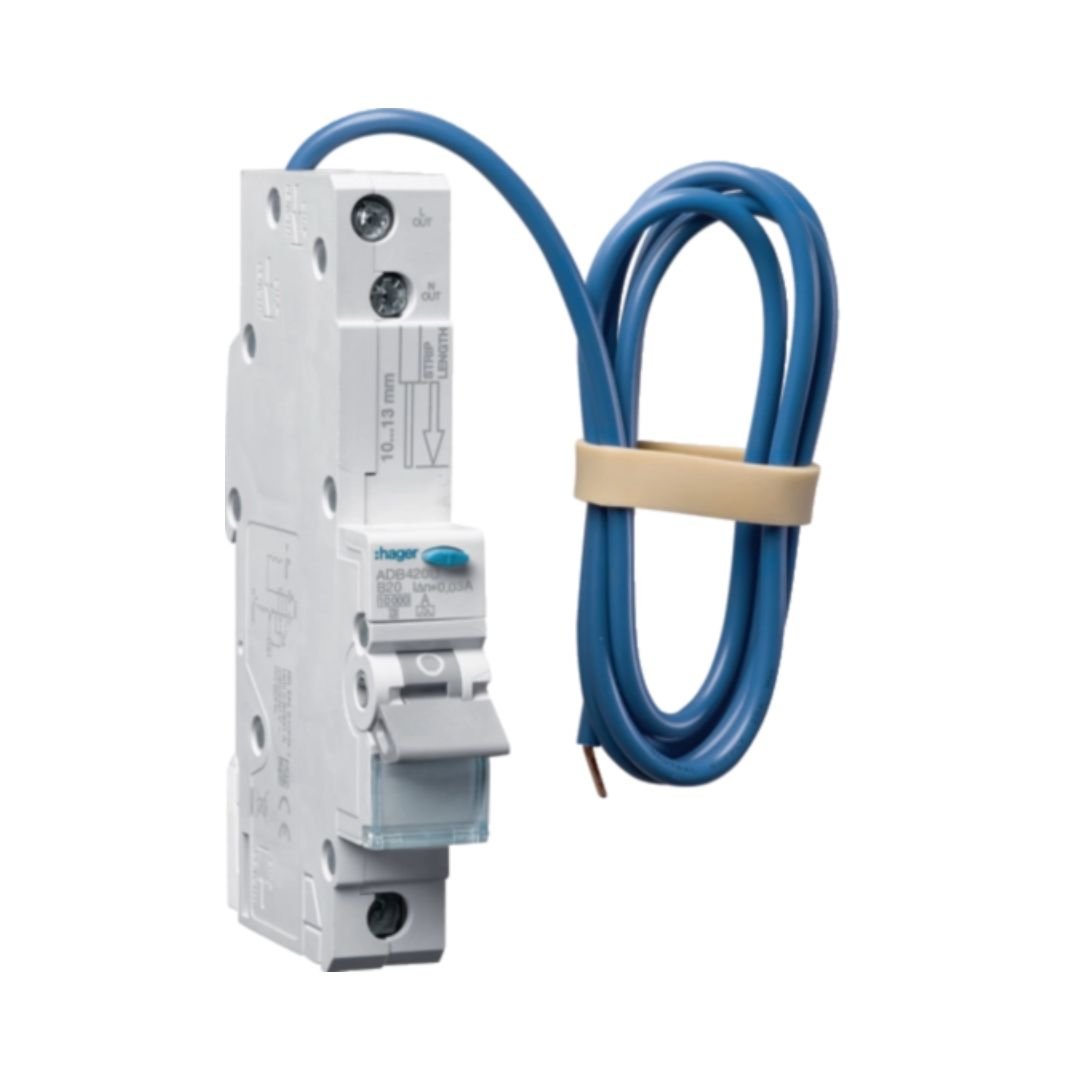

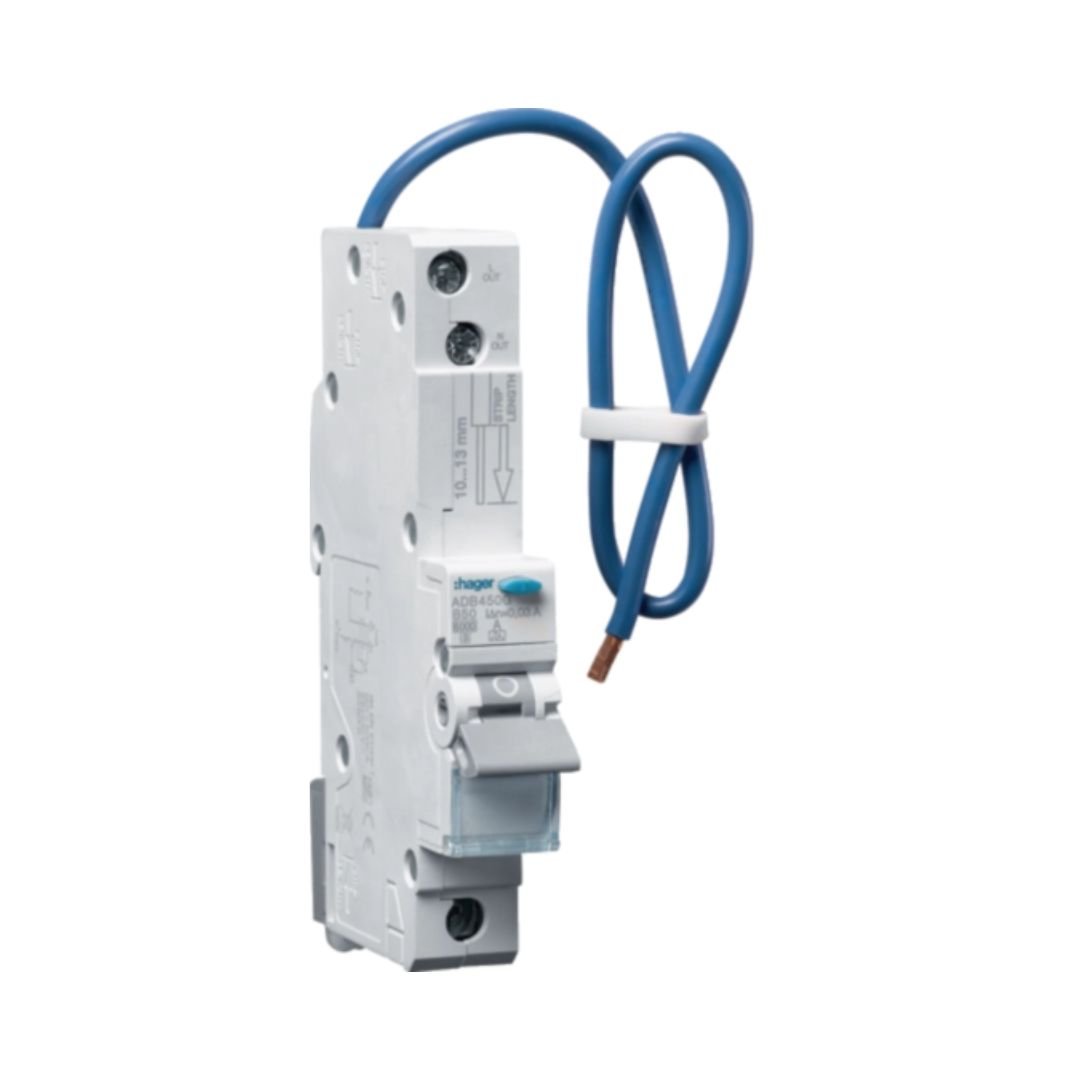

RCBO 1M 1P 10kA B 30mA Type A

£0.01£0.01

Add to compare
Add to wishlist
Product Code: ADB406U SKU: N/A Category:
Description
  • Elec­tric endur­ance in number of cycles
    2,000
  • Number of mech­an­ical oper­a­tions
    10,000
Connec­tion
  • Cross-sec­tion of input with screws, for flex­ible conductors
    1 – 10 mm²
  • Cross-sec­tion of input with screws, for massive conductors
    1 – 16 mm²
  • Cross-sec­tion of input and output with screws, for flex­ible conductors
    1 – 16 mm²
  • Cross-sec­tion of input and output with screws, for massive conductors
    1 – 25 mm²
Install­a­tion, mounting
  • Type of top connec­tion for modular devices
    Screw terminal
  • Type of bottom connec­tion for modular devices
    bicon­nect
Capa­city
  • Number of modules
    1
Dimen­sions
  • Height
    115 mm
  • Width
    17.80 mm
  • Depth
    70 mm
Compat­ib­ility
  • Suit­able for DIN Rail
    Yes
Additional information
Option

6A

,

10A

,

16A

,

20A

,

25A

,

32A

,

40A

,

50A
Brand

Hager
