OP-EBT2 Single Pattress Electronic Boost Timer

Description

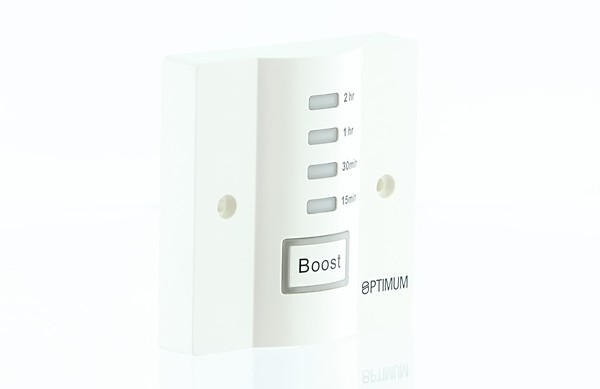

The OP-EBT2 is a two hour electronic, one-button boost timer with a visual indicator. There are four pre-set timed outputs. Suitable for installation on a surface or in-wall panel box. The electronic timer controls an internally linked output relay, with a resistive rating of 16 amps. An earth park terminal is provided. Surface-run cord outlet with cable restraint.
Press up to 4x to select boost output, press again to cancel.

• BOOST SELECTIONS: 15 min / 30 min / 1 hr / 2 hr
• DIMENSIONS: 85 x 85 x 30

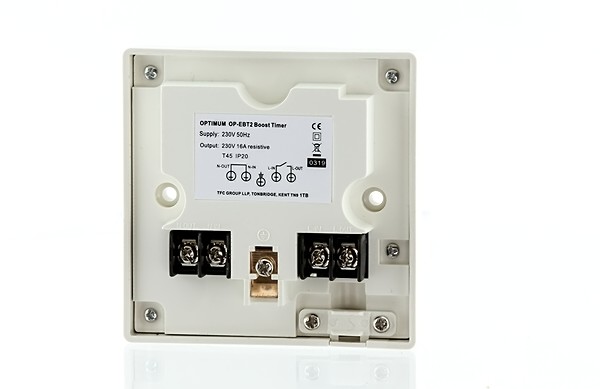

• CONNECTIONS: 4 x wire-protect screw terminals + earth park
• WEIGHT: 150g
• SUPPLY VOLTAGE: 220-240V AC 50Hz
• RESISTIVE LOAD: 16 A
• TEMPERATURE RATING: -10T45
• ACCURACY: Quartz Regulated (typically /- 1.0s)
• MOUNTING: Standard Pattress (Socket Box)
• 2-hour electronic, one-button boost timer
• Boost Selections: 15 min / 30 min / 1 hr / 2 hr
• Four preset timed outputs with visual indicators.
• Suitable for installation on a surface or in-wall pattress box
