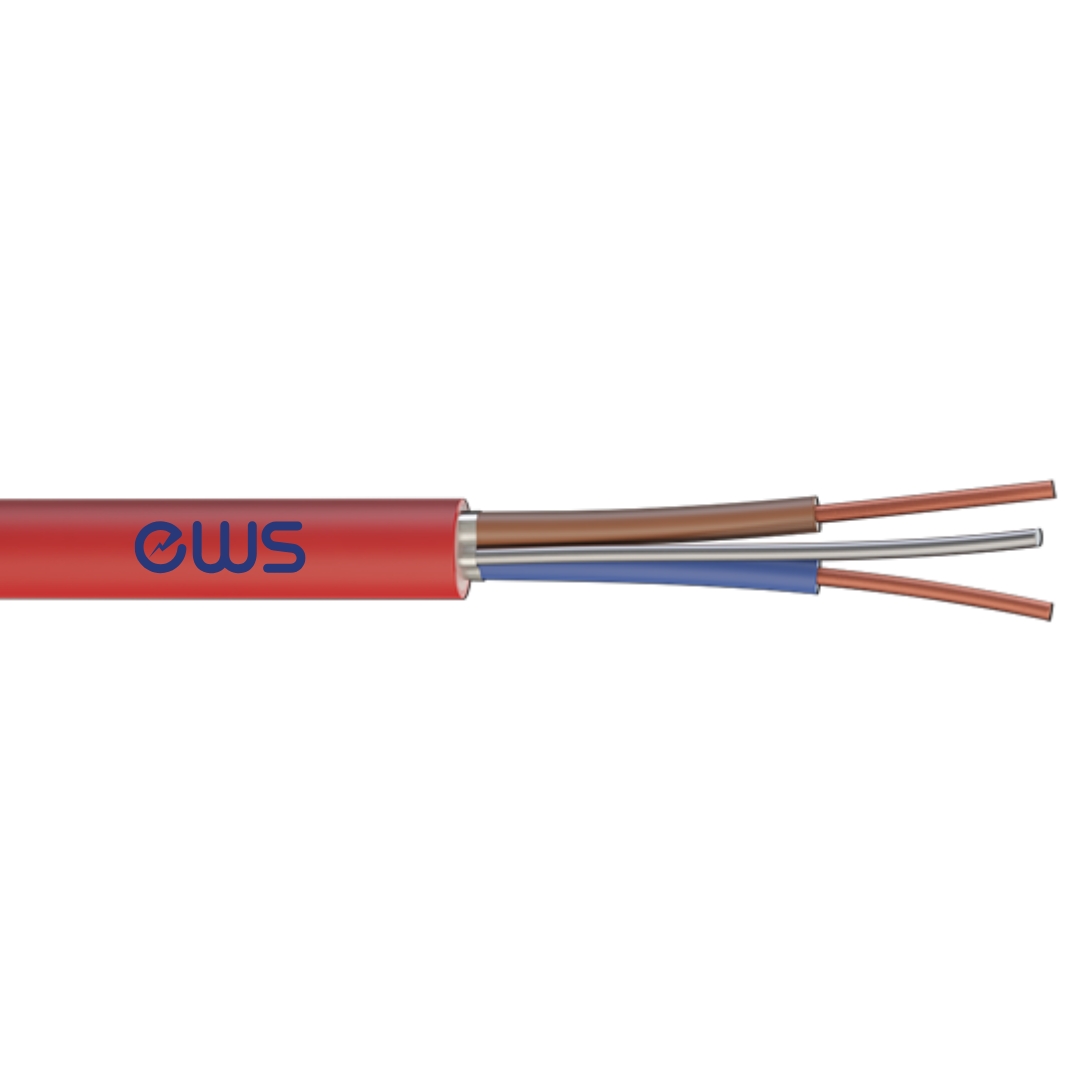

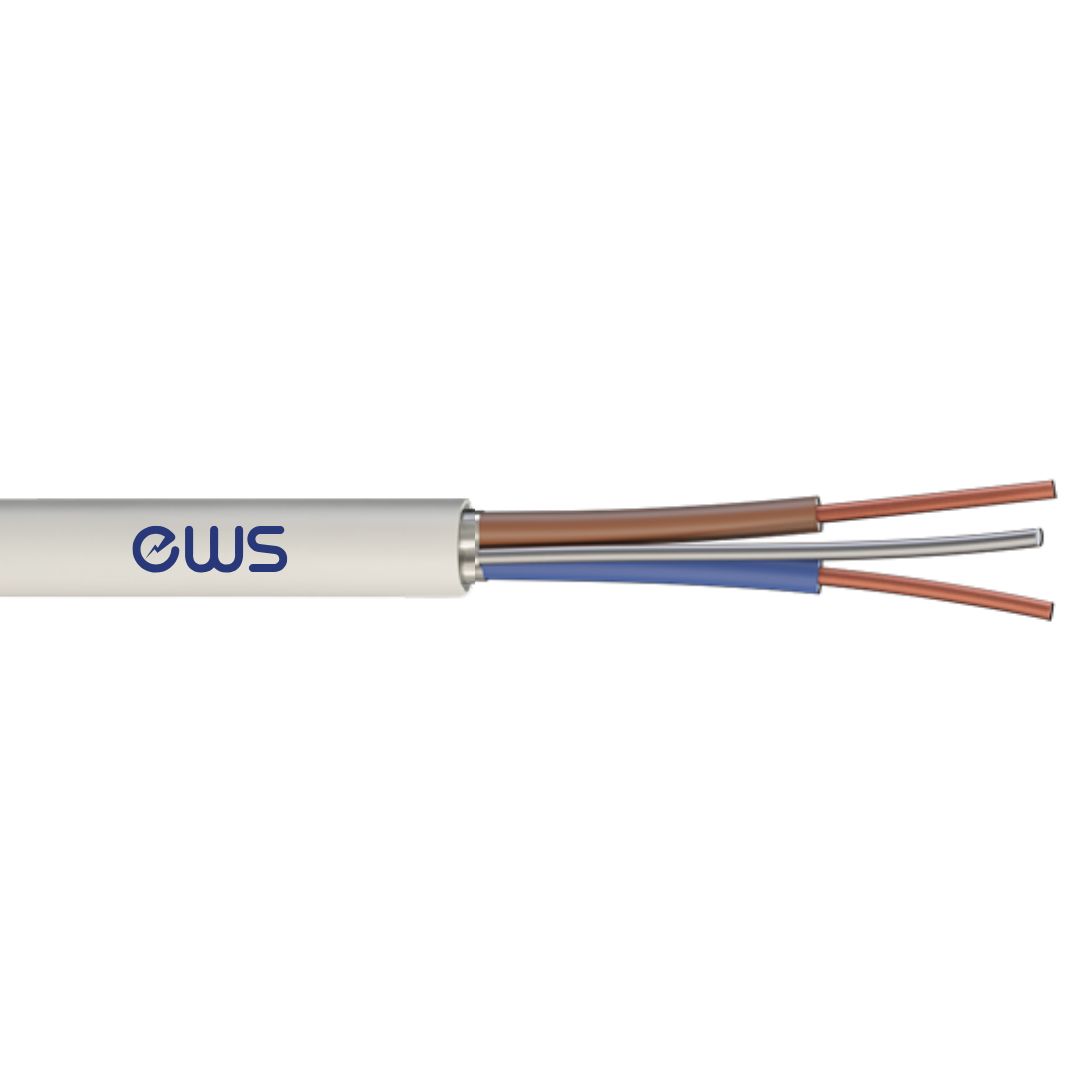

FP FIRE ALARM CABLE 1.5MM² 2 CORE & EARTH LSZH

Description

Standard fire alarm and security cable. Soft Skin Standard Fire Resistant Cables for general use in fire detection, fire alarm, voice alarm, and emergency lighting circuits. These cables are designed to carry on working for a specific length of time under fire conditions.

‘Standard’ fire resistance is recommended for general use in low rise buildings up to 10 storeys.

FIRE RATING 30 MINUTES

Standards

• Fire Resistant to IEC 331, BS6387 & BS7629-1-2008.
• Flame Retardant to BS5839-1:2017 IEC60332-3 CAT CWZ & BS7629-1-1997
• Acid Gas emission to BS EN 50267, IEC 60754
• Flame propagation to BS EN 50265, BS EN 50266 & IEC 60360134
• Smoke Emission to BS EN 50268, IEC 61034
• Flame Propagation to BS EN 50265, BS EN 50266, IEC 60332

Construction

• Conductor:
  1.5mm² – 2.5mm²: Class 1 solid conductor according to BS EN 60228
  4mm²: Class 2 stranded conductor according to BS EN 60228
• Insulation: Fire resistant MICA tape or fire resistant silicone rubber
• Overall Screen: AL/PET (Aluminium/Polyester Tape), Circuit Protective Conductor, Tinned copper
• Outer Sheath: LSZH (Low Smoke Zero Halogen)

Characteristics

• Voltage Rating: 300/500 volts
• Temperature Limits: -40°C to +90°C
• Minimum Bending Radius: As per cable manufacturer datasheet

Should not be installed at temperatures below 0oC or above 40oC
