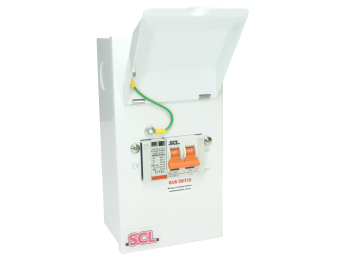

ENCLOSED 1PH SPD 230/400V 40KA + 2P 100A MAIN SWITCH
£66.98
In stock (can be backordered)
Items in stock can be next day delivery if ordered before 12 Noon. Anything not in stock can take up to 2- 3 days.
Description
The SCL Surge Shield – ESPD-1002P from Switchtec offers a complete 18th Edition compliant surge protection solution. Pre-Wired and designed for new installations or upgrades to existing TT-TN networks. The SCL Surge Shield provides surge protection up to a maximum discharge current (Imax) of 40kA.
Developed in partnership with Surge Protection Device manufacturer; Citel, France. A world leading SPD manufacturer since 1944, the SCL Surge Shield offers Type 2 surge protection which complies with IEC 61643-11.
Mounted alongside a 100A 2 Pole isolator switch allowing for circuit disconnection for module replacement and maintenance.
| Approvals | CE, TUV, EAC, RoHS |
|---|---|
| Dimensions (mm) | 237 x 126 x 111mm |
| Colour | Grey RAL 7032 |
| Amperage | Max 100A |
| Poles | 2 |
| Materials (Body) | No-combustible steel |
| Ingress Protection | IP20 |
| Voltage | 230V Single phase |
| Operating Temperature | -40 to +85℃ |
| Type | 2 |
| Number of Protected Poles | Single Phase |
| Max. AC Operating Voltage | 255VAC |
| Nominal Discharge Current – In | 20kA |
| Max. Discharge Current – by pole Imax | 40kA |
| Protection Level | 1.25kV |
| Temporary Over Voltage (TOV) – 5 sec. | 335VAC Withstand |
| Remote Signal | Yes |
| Features | Pre-prepared knockouts, internally linked, RAL7032 fire resistant steel distribution box |
| Network | 230V Single Phase |
| Additional Features | 100A 2 Pole Main Switch for added safety requirements |
| Function | Type 2 surge protection alongside a 100A isolator allowing for circuit disconnection |
| Max VAC | 255 VAC |
| Cable Capacity | 2.5 – 50mm |
Additional information
| Brand |
Switchtec |
|---|
