Economy RG6 75 Ohms Foam Filled Coaxial Cable – Aluminium Braid – 100m

Description

Economy RG6 75 Ohms Foam Filled Coaxial Cable – Aluminium Braid

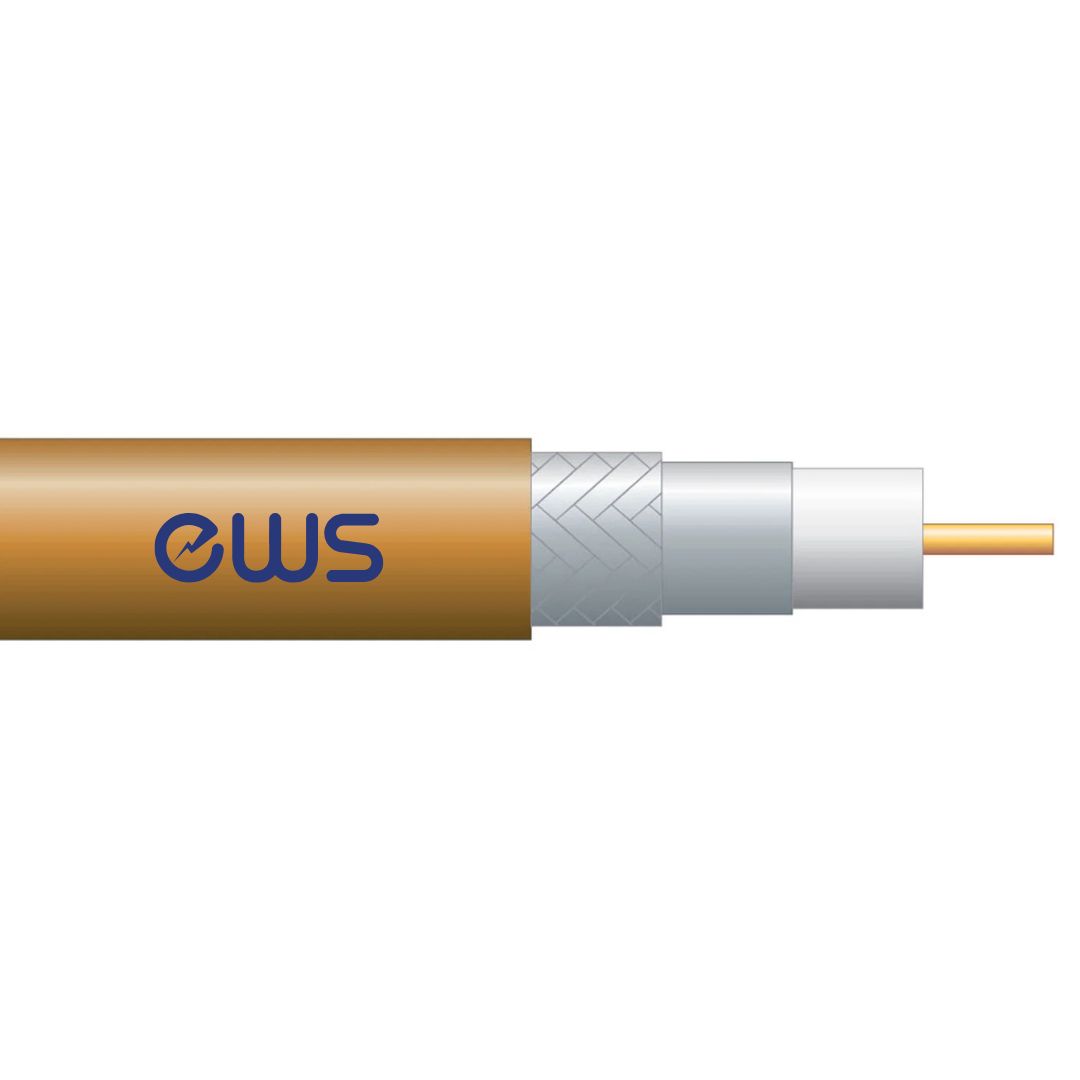

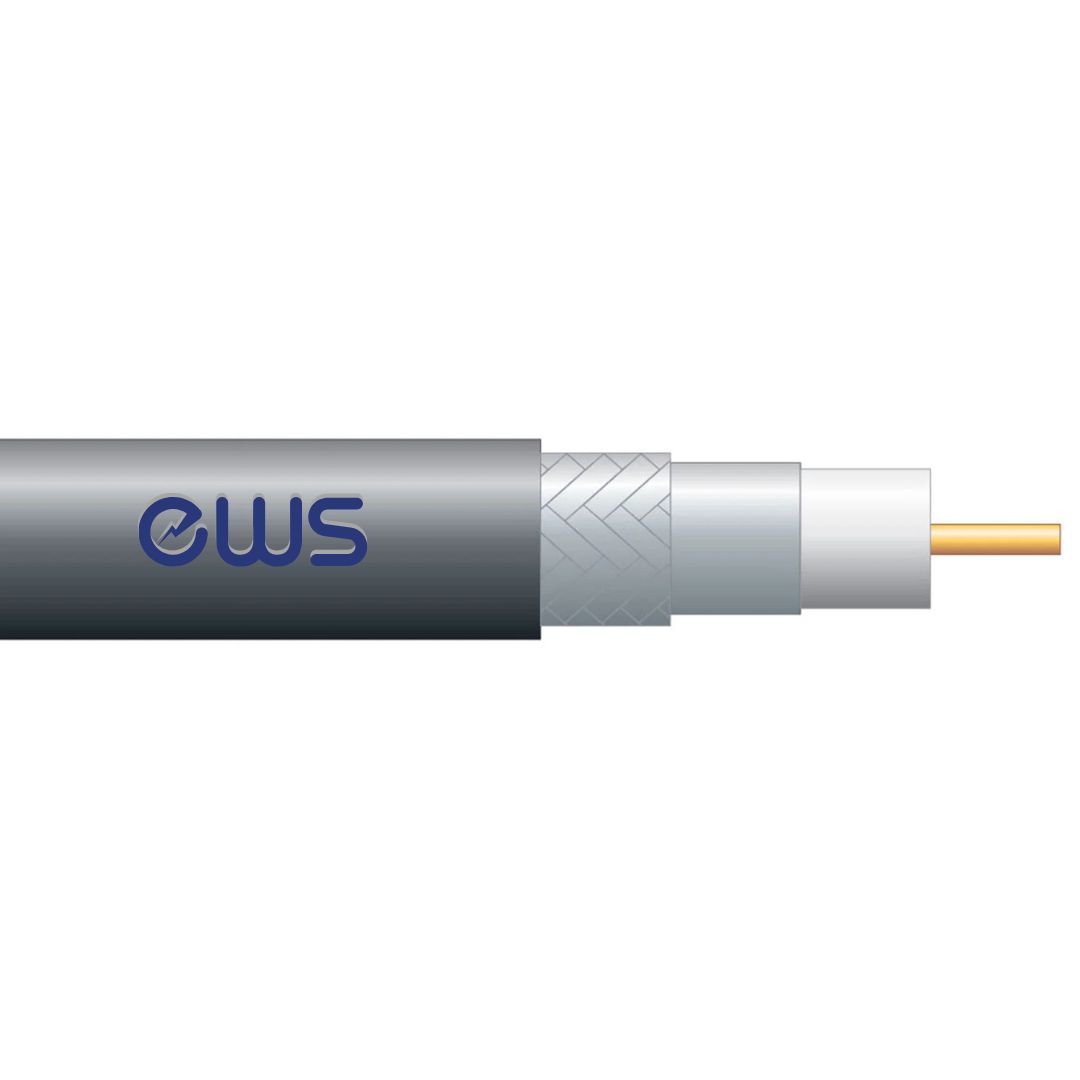

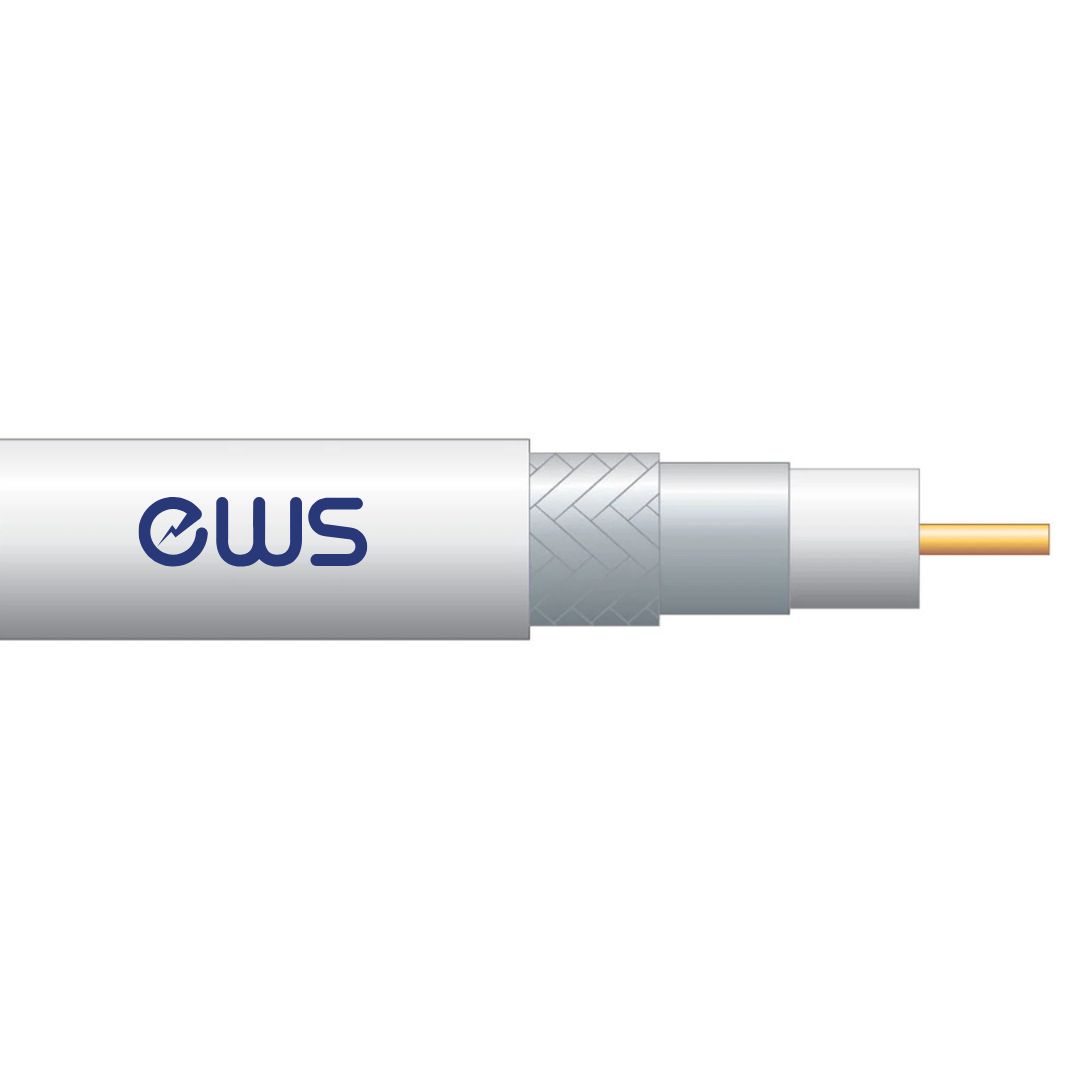

75 Ohms RG6 coaxial cable constructed of solid copper clad steel conductor, foam filled polyethylene dielectric, aluminium foil screen, aluminium braid and PVC sheath. The overall screen and braid significantly reduce noise penetration to the conductor making it suitable for digital, satellite and cable TV signal transmission.

• Solid CCS conductor
• Foam filled PE dielectric
• Binded aluminium screen
• Aluminium braid
• Supplied in 100m reel with metric cut markers

• CSA0.79mm²
• Conductor diameter1mmØ
• Conductor materialSolid CCS
• Braid48 x 0.12mmØ
• Braid materialAluminium
• ScreenAluminium / PET foil
• Dielectric4.6mmØ foam PE
• Cable : diameter6.6mmØ
• Impedance75 Ohms
• Capacitance54pF/m
• Velocity factor83%
• Return loss 5-400MHz24dB min./100m
• Return loss 450-1000MHz20dB min./100m
• Return loss 1000-2150MHz16dB min./100m
• Attenuation @ 5MHz2.8dB max./100m
• Attenuation @ 50MHz5.1dB max./100m
• Attenuation @ 100MHz6.9dB max./100m
• Attenuation @ 200MHz10.1dB max./100m
• Attenuation @ 400MHz14.9dB max./100m
• Attenuation @ 860MHz20.1dB max./100m
• Attenuation @ 1000MHz22.2dB max./100m
• Attenuation @ 1750MHz29.6dB max./100m
• Attenuation @ 2150MHz33.3dB max./100m
• Length100m
• Weight3.8kg
