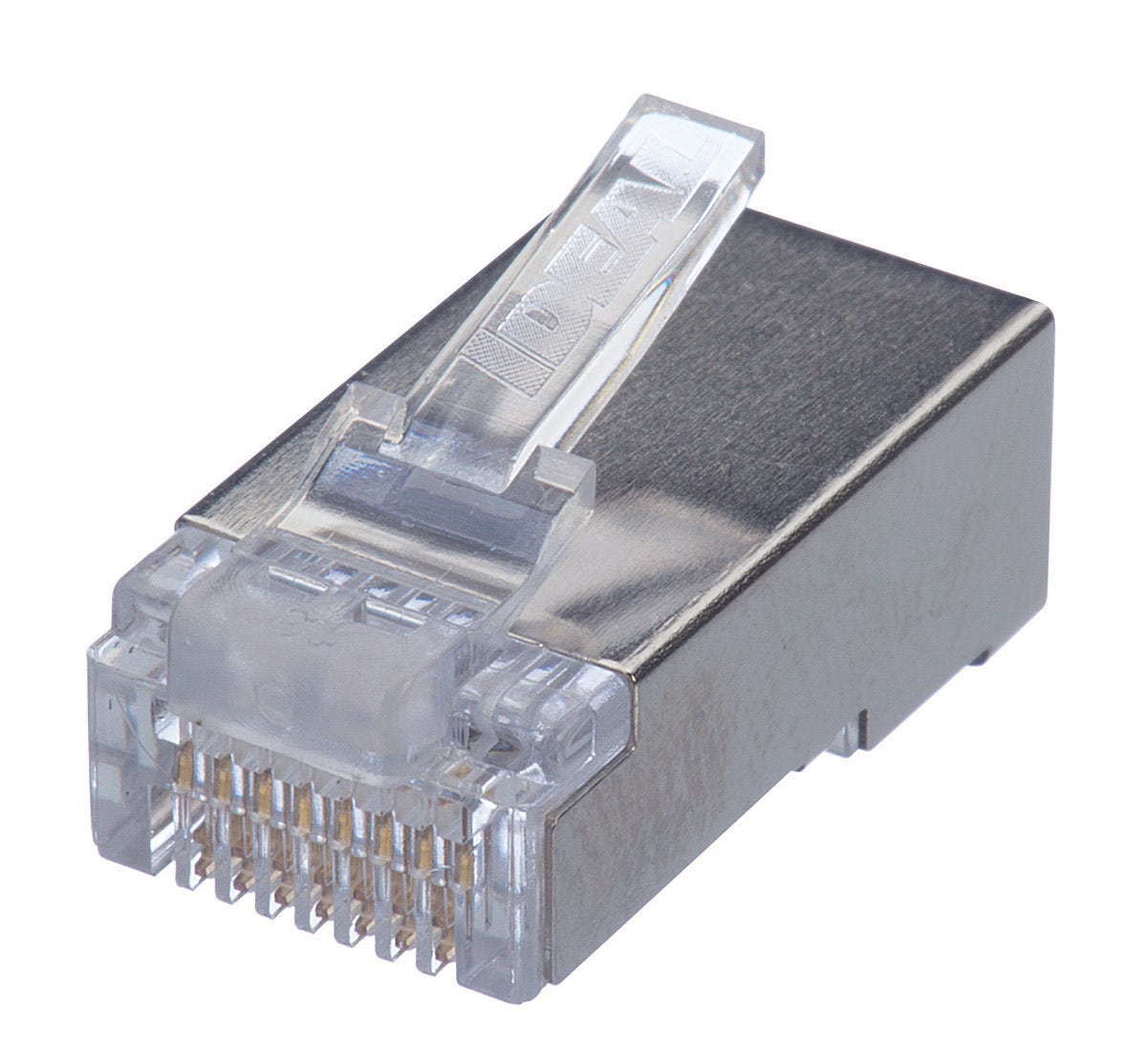

CAT5e Shielded Standard RJ45 Connectors (25/PK)

Description

IDEAL® Shielded CAT5e RJ45 connectors feature an integrated metal shell that ensures a continuous path for cable shielding, allowing it to pass through the connector and into the device’s shielded port. It includes internal shield connection points on both the top and bottom for the cable foil or drain wire to make contact within the plug. Suitable for both shielded CAT5e cables with conductors up to 0.041″ insulated diameter. For shield continuity, fold the cable’s foil back over the jacket, or wrap the drain wire, to ensure conductivity with the plug shield. Trust IDEAL® RJ45 connectors for accurate and reliable performance in all PoE and data applications.

• Internal shield design for contact with cable foil or drain wire
• For CAT5e shielded cables with a maximum insulated conductor diameter of 0.041”
• Compatible with all IDEAL® RJ45 crimping tools
• Simply fold the cable’s foil back over the jacket, or wrap the drain wire, to ensure conductivity with the plug shield
• 50 micro-inch gold plating on contact mating area for long term reliability in connectivity, even after hundreds of mating cycles
• Max cable jacket outer diameter of .270″
• UL Listed
• PoE, PoE+ and PoE++ compatible. IEEE 802.3af/at/bt
• Pack of 25 connectors
