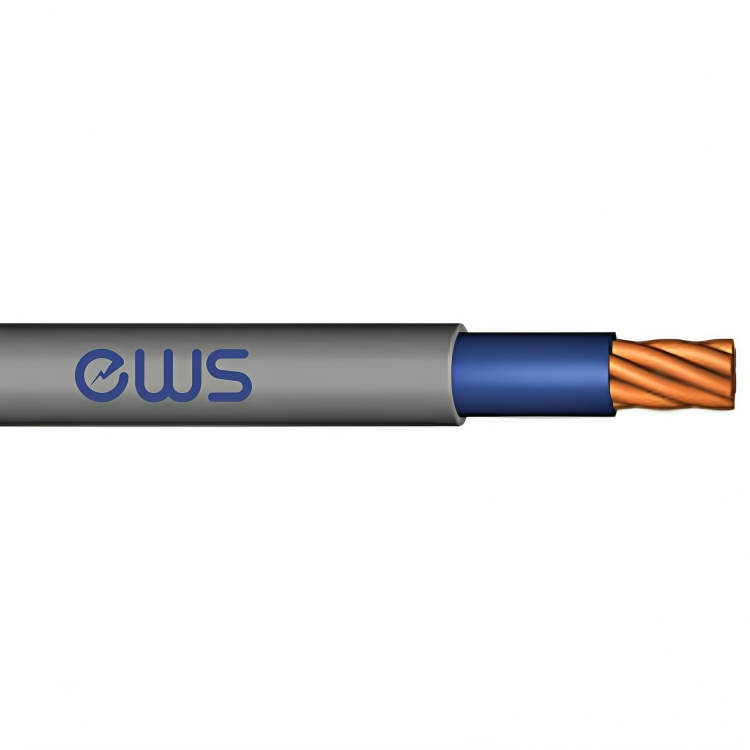

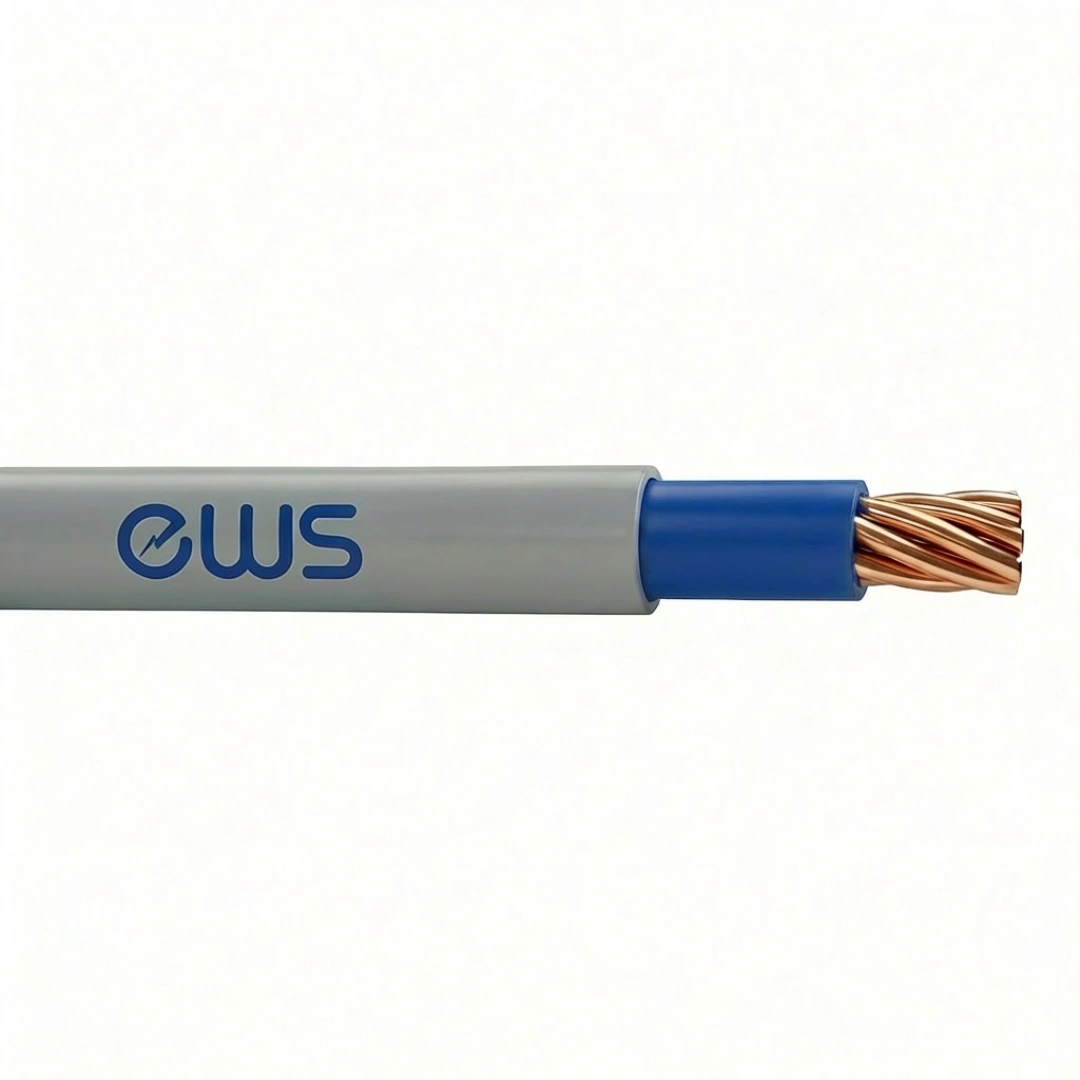

BLUE METER TAILS SINGLE CORE PVC CABLE

Description

6181Y is a PVC single core cable, double insulated with a voltage rating of 300/500V. It is a general surface wire cable for fixed installation, domestic and light industrial use. Available in blue and brown cores, sizes from 1mm² – 120mm². This cable is BASEC approved to 35mm².

Standards

• BS6004
• Flame propagation: BS EN 50265 (IEC 60332)
• BASEC approved to 35mm²

Construction

• Conductor:
  1mm² – 2.5mm²: solid conductor
  above 2.5mm2: plain annealed stranded circular copper conductor, single core
• Insulation: PVC
• Sheath: PVC
• Sheath Colour: Grey or White

Characteristics

• Voltage Rating: 300/500 volts, 120mm² rated at 600/1000 volts
• Temperature Rating: -15°C to +70°C
• Minimum Bending Radius: As Per Manufacturers Datasheet
