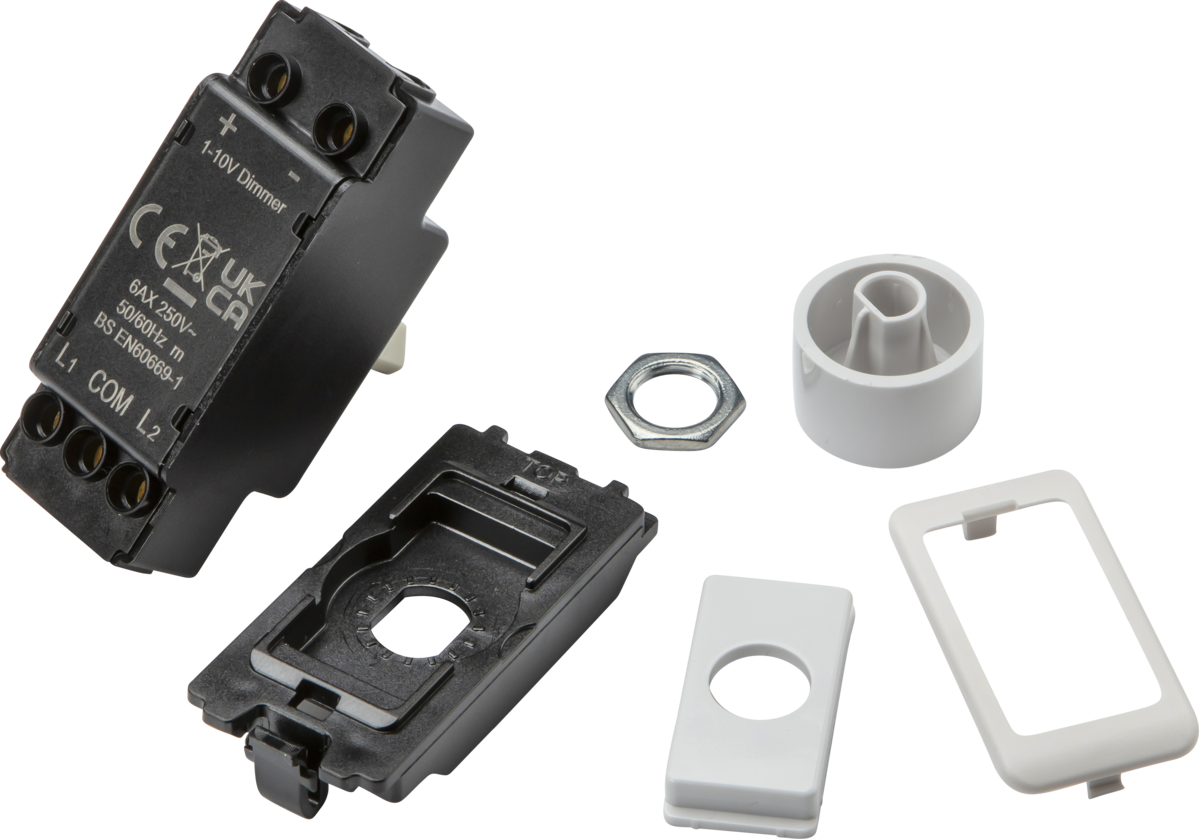

6AX 2-way 1-10V Dimmer Module

Description

These dimmers are for use with high frequency ballast or LED drivers that use a 1-10V DC control input, use the rotary action to control the brightness and push on/off to switch mains power on/off. The brightness control and mains switches are electrically isolated.

• 6AX 250V
• 2-way
• 1-10V
• Push On/Off, rotary dimming action
• For dimmable ballast or LED drivers with 1-10V DC control input
• Supplied with a Curved Edge Grid Adaptor kit so that it can be used within that system or with our range of unpopulated dimmer plates

NB: For use with 1-10V ballasts/drivers only. Check the in-rush current for LED lamps or drivers does not exceed 6A, and the rating on the control signal side of the ballast/driver does not exceed 50mA before connecting. Fit inrush current limiters where necessary. Do not overload.
