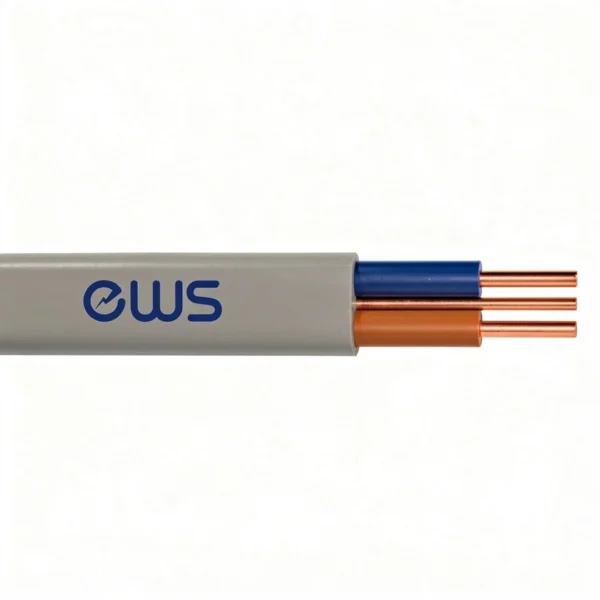

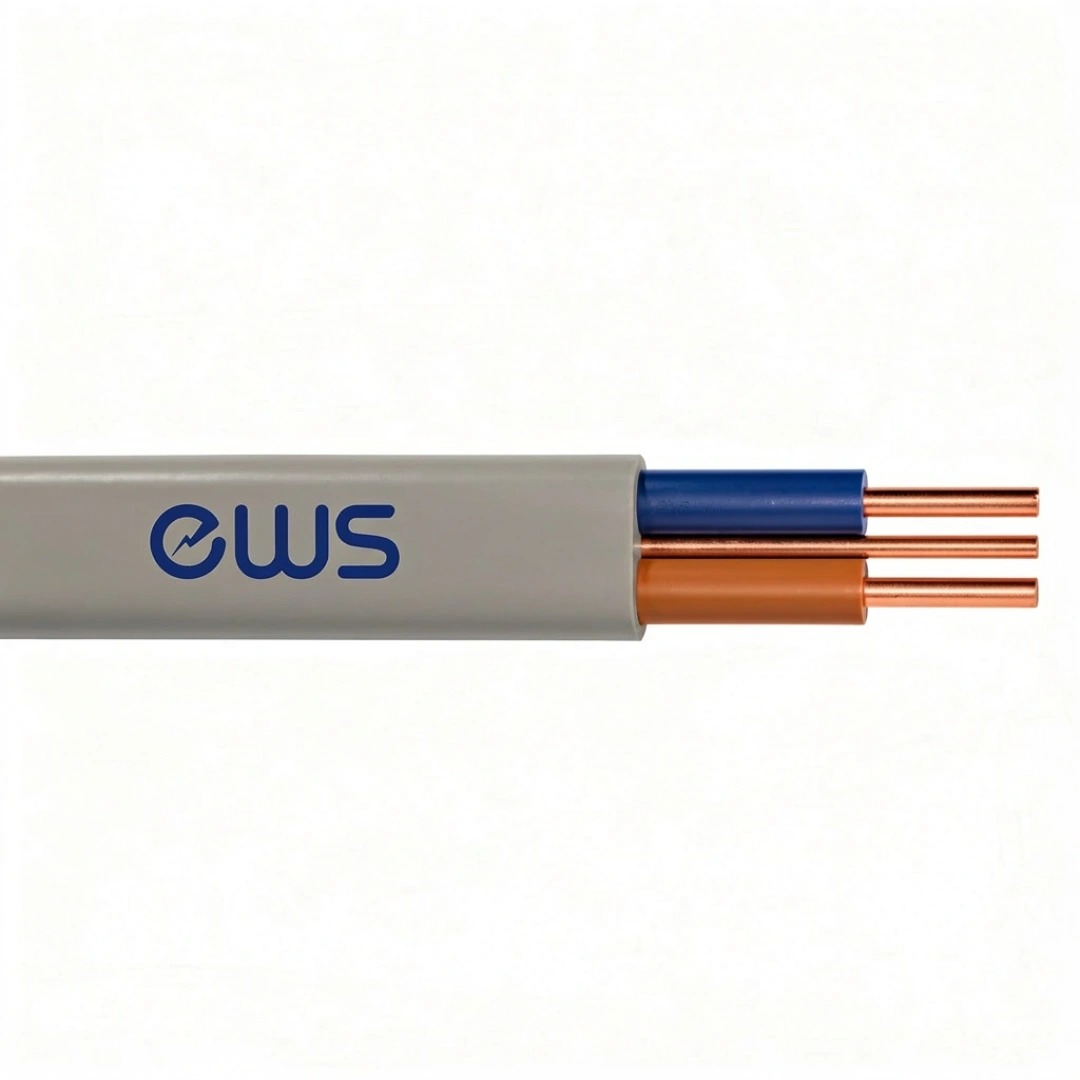

6242Y1 6mm Twin & Earth Cable

Description

Domestic wiring cable. This cable has a bare protective conductor plus 1, 2 or 3 cores. Used for fixed installations in dry or damp premises clipped direct to the surface, on trays or in free air. Where mechanical protection is required, it can be laid in conduit or trunking.

Standards

• BASEC Approved

Construction

• Conductor:
  up to 4mm² – Class 1 Solid Annealed Compacted Circular Copper Conductor
  from 4mm² – Class 2 Stranded Plain Annealed Compacted Circular Copper Conductor
• Insulation: PVC
• Sheath: PVC
• Sheath Colour: Blue

Characteristics

• Voltage Rating: 300/500 Volts
• Temperature Rating: -5°C to +70°C
• Minimum Bending Radius: As Per Manufacturers Datasheet

Should not be installed at temperatures below 0°C to +60°C

Core IDs

• 1 Core: Brown
• 2 Core: Brown, Brown
• 2 Core: Brown, Blue
• 3 Core: Brown, Blue, Grey

Please note: If you require advice on which cable to use or how and where to install it, it is recommended that you consult a relevant qualified tradesperson. The Superlec Direct team are not qualified electricians.
