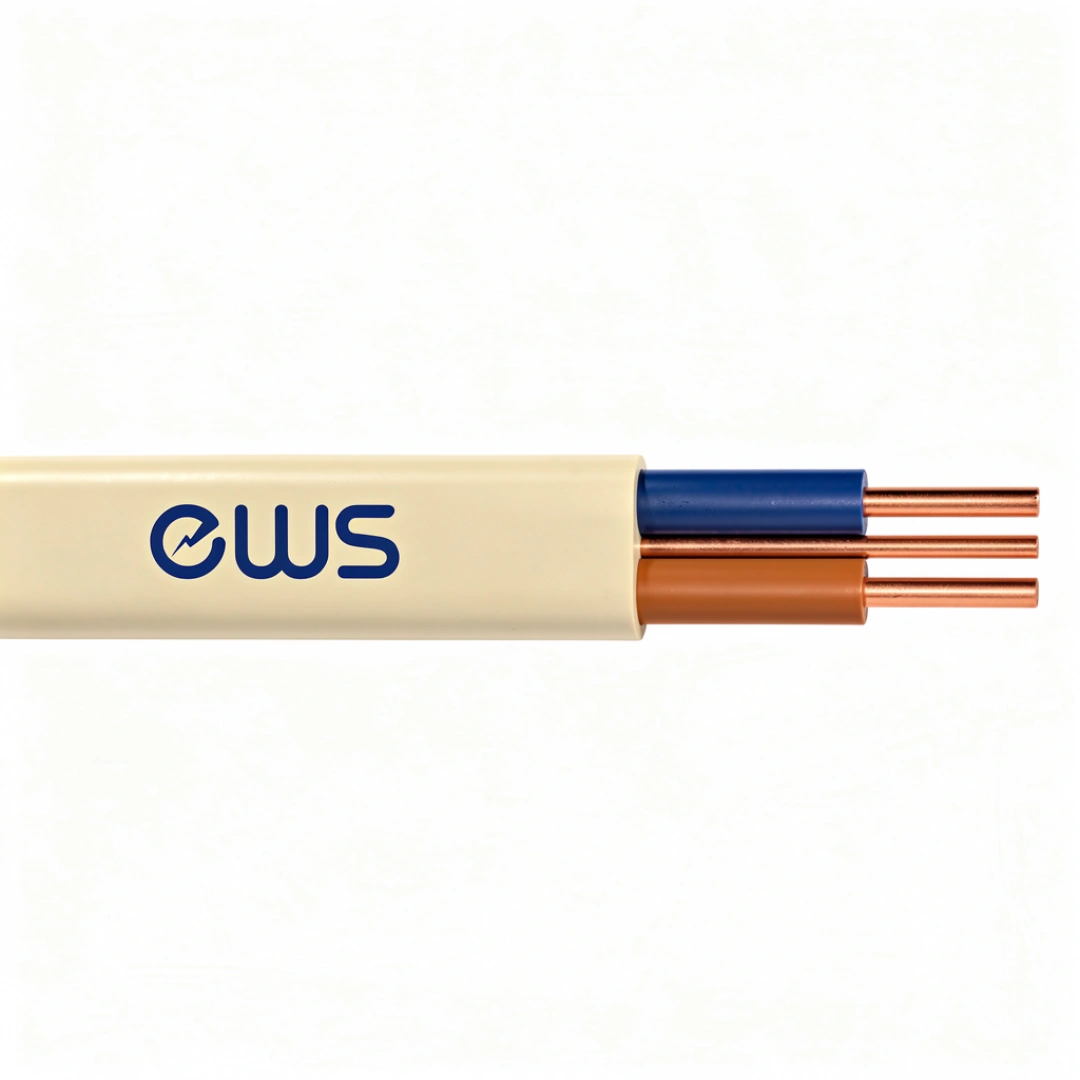

6242Y1 2.5mm Twin & Earth Cable

Description

Domestic wiring cable. This cable has a bare protective conductor plus 1, 2 or 3 cores. Used for fixed installations in dry or damp premises clipped direct to the surface, on trays or in free air. Where mechanical protection is required, it can be laid in conduit or trunking.

Standards

• BS6004
• Flame propagation: BS EN 50265
• BS EN 50363-3
• BASEC Approved

Construction

• Conductor:
  up to 4mm² – Class 1 Solid Annealed Compacted Circular Copper Conductor
  from 4mm² – Class 2 Stranded Plain Annealed Compacted Circular Copper Conductor
• Insulation: PVC
• Sheath: PVC
• Sheath Colour: Blue

Characteristics

• Voltage Rating: 300/500 Volts
• Temperature Rating: -5°C to +70°C
• Minimum Bending Radius: As Per Manufacturers Datasheet

Should not be installed at temperatures below 0°C to +60°C

Core IDs

• 1 Core: Brown
• 2 Core: Brown, Brown
• 2 Core: Brown, Blue
• 3 Core: Brown, Blue, Grey
