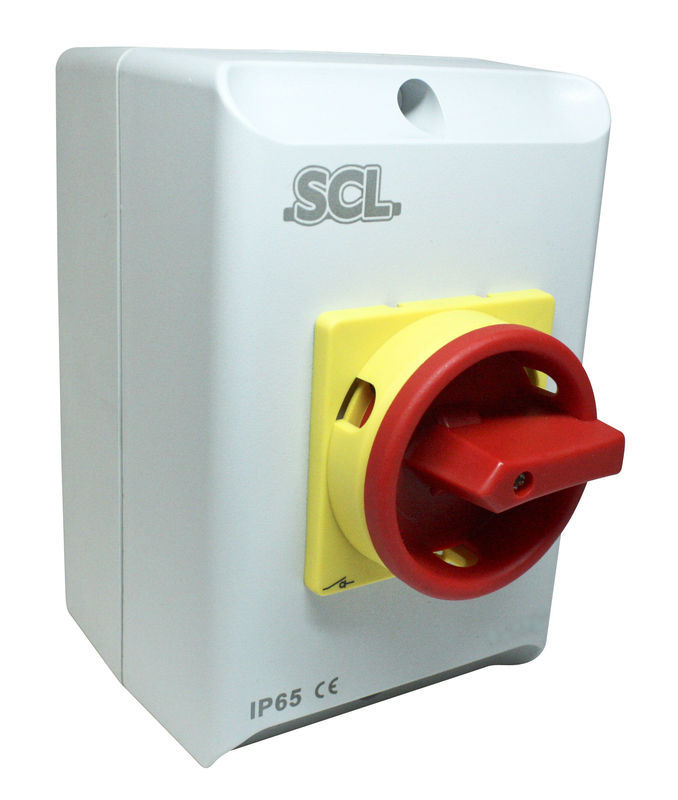

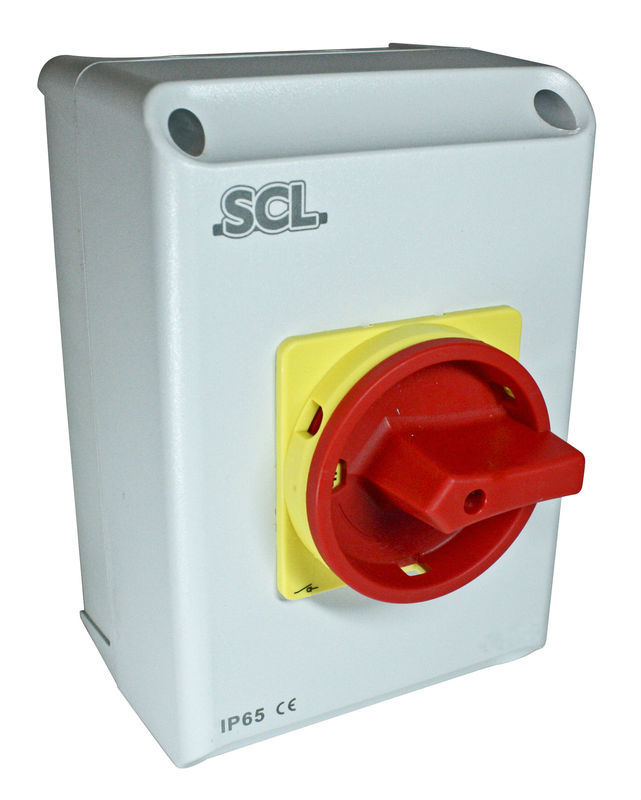

4 POLE IP65 ENCLOSED ISOLATOR
Price range: £10.13 through £37.13
Items in stock can be next day delivery if ordered before 12 Noon. Anything not in stock can take up to 2- 3 days.
Description
Description
• Insulated 4-pole AC Isolators
• Weatherproof to IP65
• Easy installation
• M20/25 Knockouts up to 63A (Top & Bottom)
• Pad lockable handle in off position
• Interlocked cover, removable in off position only
• Earth and Neutral terminals included
• Captive retained cover screws
• Conforms to IEC 60947-3
| Approvals | IEC |
|---|---|
| Dimensions (mm) | 125 x 100 x 120 |
| Colour | Grey / Red / Yellow |
| Poles | 4 |
| Materials (Body) | PC |
| Cable Size, Flexible (mm2) | 1.0-16.0 |
| Cable Size, Solid (mm2) | 0.75-10.0 |
| Ingress Protection | IP65 |
| Sound Output Level dB | N/A |
| Pitch | N/A |
| Materials (Terminals) | Copper |
| Contact Arrangement | 4 Normally Open |
Additional information
Additional information
| Brand |
SCL |
|---|---|
| Options |
20A ,25A ,32a ,40A ,63A ,80A ,100A |
