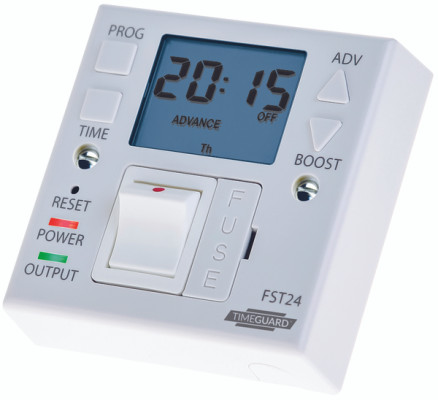

24 Hour Supply Master Fused Spur Time Switch
£35.09
In stock (can be backordered)
Items in stock can be next day delivery if ordered before 12 Noon. Anything not in stock can take up to 2- 3 days.
Description
Description
Specification
| Operating Voltage | 230V AC |
| Frequency | 50Hz |
| Earth Class Rating | Class II |
| Operating Temperature | 0°C to 40°C |
| Program Modes | 24 Hour, 1 Hour/2Hour Boost |
| Switch type | Double Pole (Isolation Switch) |
| Standby Consumption | <0.91W |
| Dimensions | Height 85mm, Width 85mm, Depth 43mm Protruding Depth: 30mm |
Timeguard’s new look Fused Spur Timeswitches with easy viewing display, optional 1 or 2 hour boost facility and automatic Summer/Winter time changeover. Clearly delivering the tried and trusted features you expect from the SupplyMaster range.
- Suitable for use with up to 3kW immersion heaters
- Red LED ‘Mains ON’ and green LED ‘Output’ indicators for easy viewing
- Permanent OFF and timed outputs available
- Easy view 24 hour digital clock/timer display
- Optional boost facility
- Automatic summer/winter time changeover
- Self-cancelling override
- Programme advance and review options
- Integral memory back up battery retains programmes in event of power failure
- Ideal for replacing single gang connection unit or fixed appliance outlets
- Double pole switch for ease of control BS1362 fuse replaceable from front
Additional information
Additional information
| Brand |
Timeguard |
|---|
Shipping & Delivery
Downloads
