24 Hour Segment Timeswitch for Consumer Units
£88.63

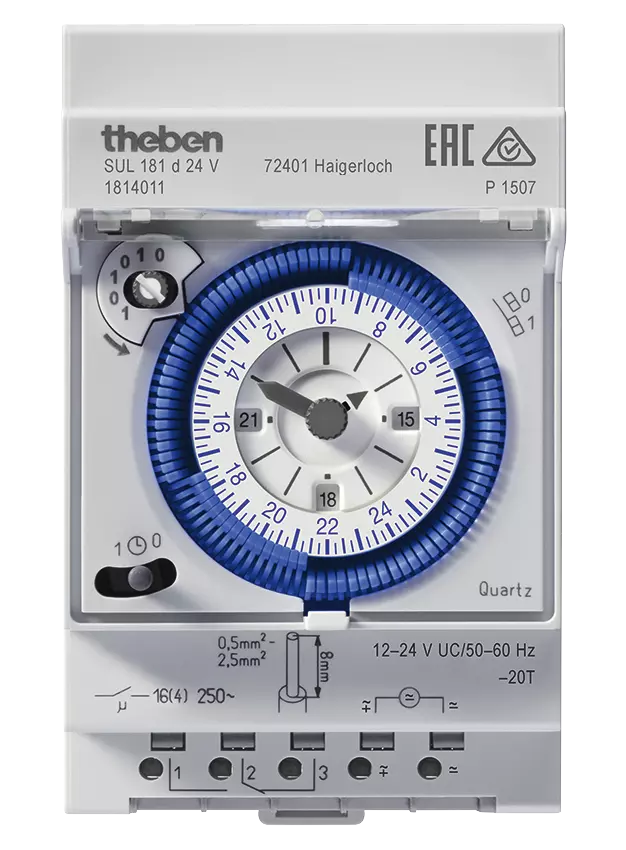

The SUL181 has all the features and benefits of the SYN 161 d, with the addtion of a 72 hour power reserve.
A 52.5mm (3 module) wide segment 24 hour 16A timeswitch.
- Analogue time switch
- 1 channel
- Daily program
In stock (can be backordered)
Items in stock can be next day delivery if ordered before 12 Noon. Anything not in stock can take up to 2- 3 days.
Description
Description
Specification
| Operating Voltage | 230V AC |
| Installation Type | DIN Rail |
| Type Of Connection | DuoFix spring terminals |
| Drive | Quartz-controlled stepper motor |
| Switch Rating 230V AC | Resistive 16A, Inductive 4A |
| LED Lamp < 2 W | 20W |
| LED Lamp 2-8 W | 180W |
| LED Lamp > 8 W | 180W |
| Segment Value | 15 Minutes |
| Time Accuracy at 25 °C | Synchronised with mains |
| Type Of Contact | Changeover contact |
| Standby Consumption | 0.5W |
| Housing and Insulation Material | High-temperature resistant, self-extinguishing thermoplastic |
| Operating Temperature | -20°C to 55°C |
| Dimensions (mm) | Height 90.4, Width 53.6, Depth 65.6 |
Additional information
Additional information
| Brand |
Timeguard |
|---|
