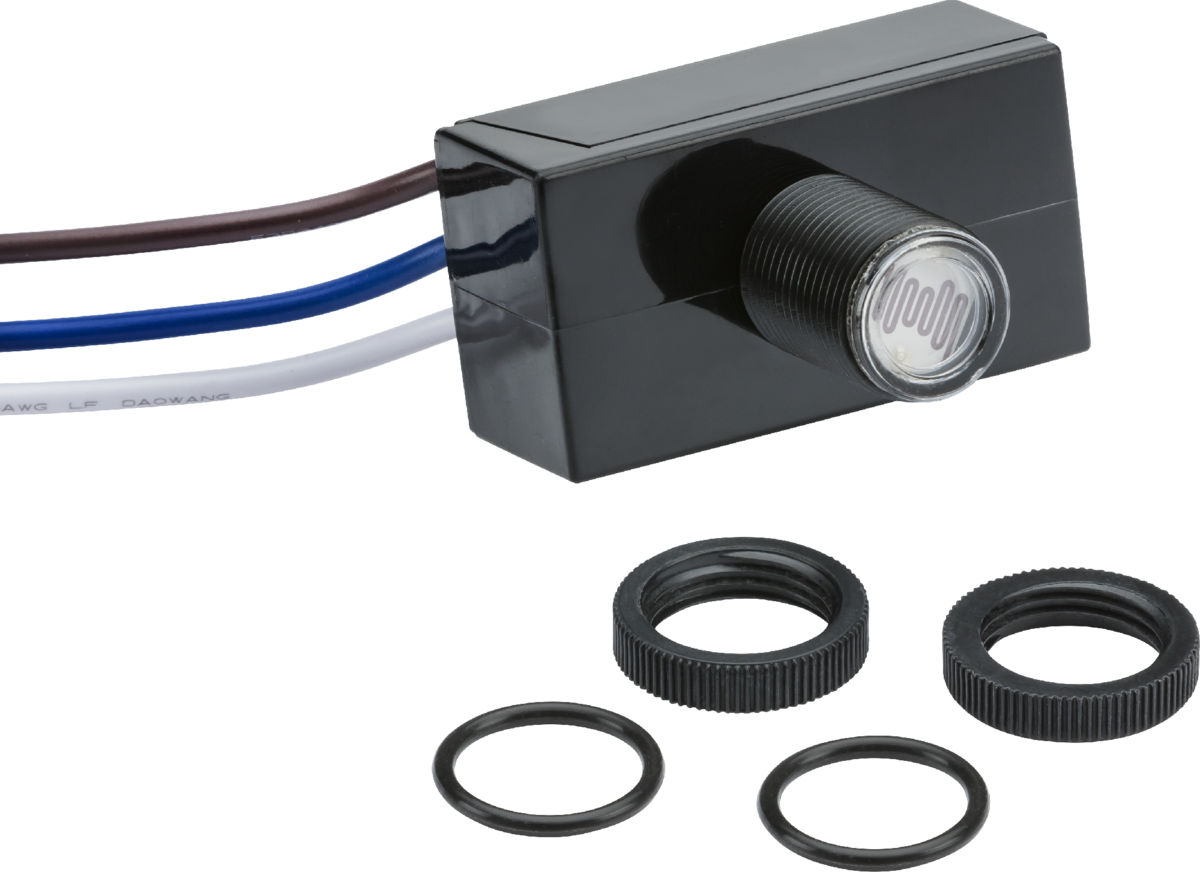

230V 5A IP65 Photocell Switch

Description

Direct wire-in thermal photodiode dusk to dawn sensor. Suitable for mounting in appropriate light fittings and suitable enclosures. Ideal for controlling lighting automatically based on the ambient lighting level.

• 230V AC 50Hz
• IP65 rated (once installed)
• Max. load: 500W Incandescent / 850VA Inductive / 300W LED
• Operating range: On 10-20lux / Off 30-60lux
• Time delay: 20-120 seconds
• Ambient temperature: -40°C to 70°C
• Relative humidity: 99% RH
• Pre-wired with 300mm cable
• Sensor projection: 21mm
• Cut out required: 17mm
• Seals and locknuts included
