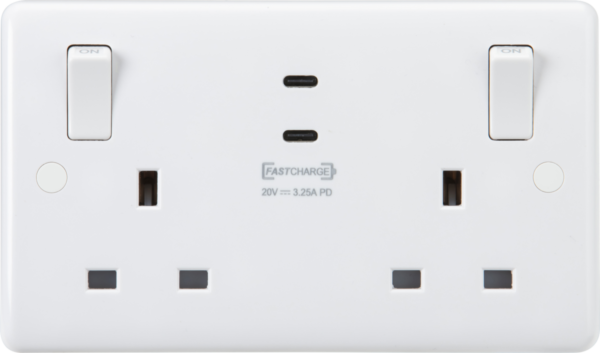

13A 2G SP Switched Socket with Dual USB-C 20V DC 3.25A Max. 65W

Description

Gently contoured 7mm plate with rounded edges and anti-microbial properties, includes screw cap covers.

Features

• 13A rated
• Outboard Rockets
• Dual USB-C outputs
• Top access to captive terminals to speed up installation.
• Twin earthing points for high integrity earthing requirements
• Anti-microbial properties – 3rd part tested
• Min. Mounting box depth: 25-35mm dependent on wiring conditions .
• Fully certified to latest British Safety Standards

Benefits

• Latest USB-C output formats
• Fastcharge two devices at same times at up to an incredible 45W and 20W
• Charge laptops at up to 65W from a single USB-C output – no need for that clumsy power adaptor anymore
• Universal compatibility with handsets, laptops tablets via USB-PD/PPS
• Supports wide range of output voltages: 5V/3A, 9V/3A, 15V/3A and 20V/3.25A
• Supports USB-PD, QC and PPS charging protocols
• GaN (Gallium Nitride) transformer for optimum efficiency
• Over Voltage Category III – suitable for domestic and commercial installations
• Built in overheat and overload protection
• ErP Ready (0.4W in stand-by mode)

WE RECOMMEND ONLY USING CERTIFIED USB CABLES FOR SAFETY, OPTIMUM PERFORMANCE AND TO ENSURE COMPATIBILITY.

ENSURE YOU USE CABLES THAT CAN HANDLE CHARGES OF UP TO 60W – OR 100W IF USING FOR LAPTOP CHARGING

IMPORTANT:
YOUR DEVICE CONTROLS THE POWER BEING DRAWN, NOT THE SOCKET MOST COMPATIBLE DEVICES WILL ONLY ACTIVATE FASTCHARGE BETWEEN 0-70% BATTERY POWER. AFTER THIS IT WILL REVERT TO STANDARD CHARGING PARAMETERS TO PROTECT BATTERY

Only iPhone 15, and above has adopted the USB-PD standard, earlier generations of Apple devices may not work with voltage switching USB chargers, many are also limited to a max of 20W charge rate

NB: Requires 35mm deep pattress box if surface mounting (CU1800)
